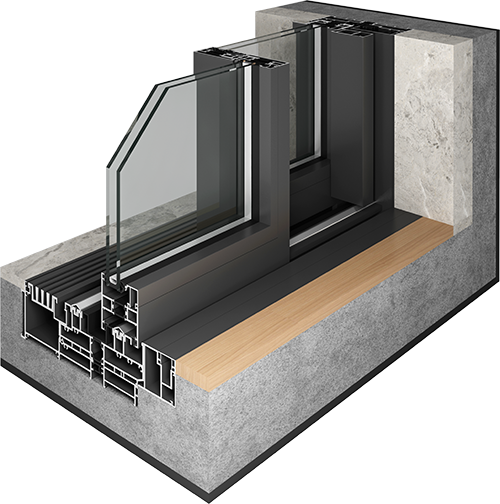

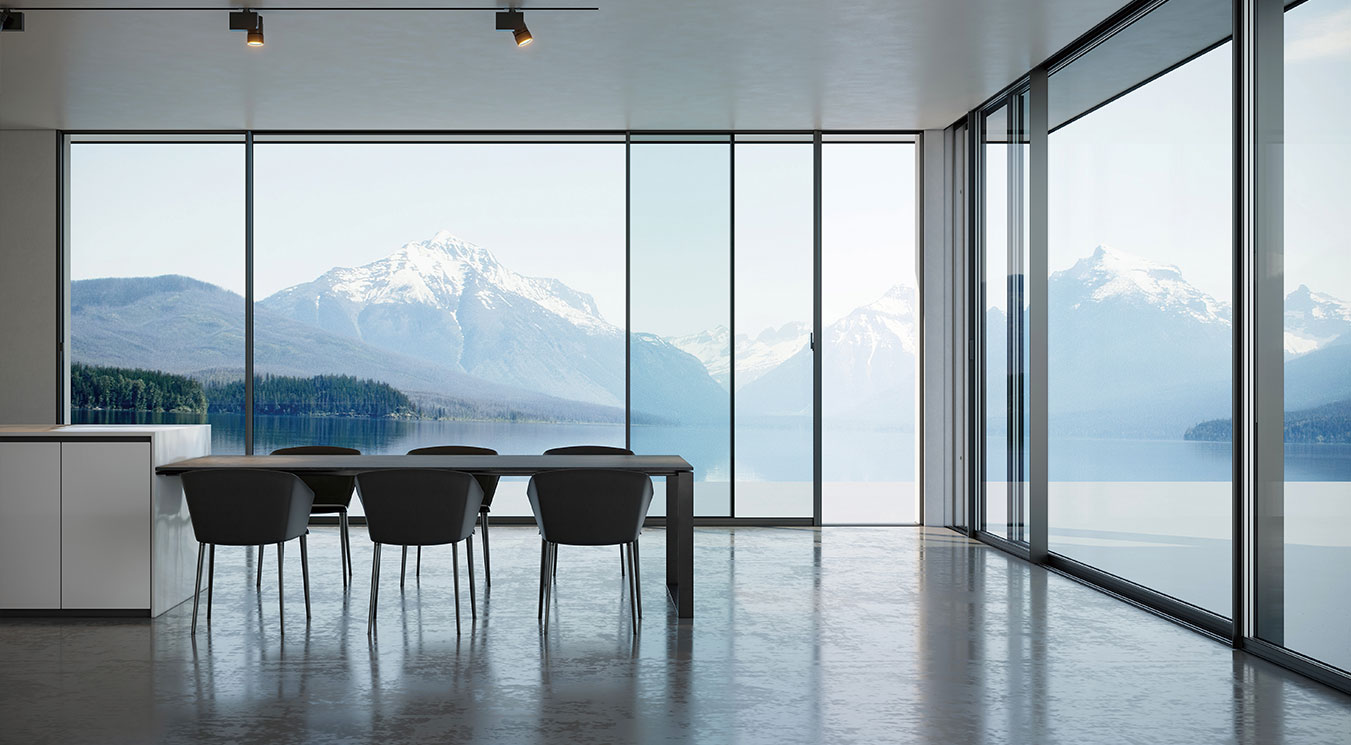

| PD65SS Sliding door | |
| Design | |
| Opening | Sliding |
| Min.-max. basic depth(mm) | 170.5 |
| Vent depth(mm) | 65 |
| Face width of interlock section(mm) | 28 |
| Face width of frame(mm) | 42 |
| Face width of vent frame(mm) | 53 |
| Face width of meeting stile(mm) | No |
| Face width of top outer frame(mm) | 75 |
| Face width of bottom outer frame(mm) | 38 |
| Min.-max. face width of mullion(mm) | 42 |
| Threshold height(mm) | 55 |
| Reinforcement interlock section | No |
| Number of tracks | Double track |
| Concealed drainage | Yes |
| Ventilation vent | No |
| Integral glass guardrail | No |
| Fly screen | No |
| Surface finish | MED |
| Vent data | |
| Min.-max. vent height(mm) | 2200-3000 |
| Min.-max. vent width(mm) | 800-2800 |
| Max. vent size(m2) | 7.2 |
| Max. vent weight(Kg) | 360 |
| Min.-max. glass thickness(mm) | 38/48 |
| Glazing method | Wet glazing |
| Implement scenario | |
| Façade insert unit | Yes |
| Conservatory insert unit | Yes |
| Parameter | |
| U values in W/(㎡·K) | 1.7 |
| Sound reduction(dB), depending on glazing type | 32 |
| Air permeability(m3/(m.h)) | 1 |
| Water tightness(Pa) | 350 |
| Wind load resistance(KPa) | ≤2.5 |
| Burglar resistance | RC2 |
