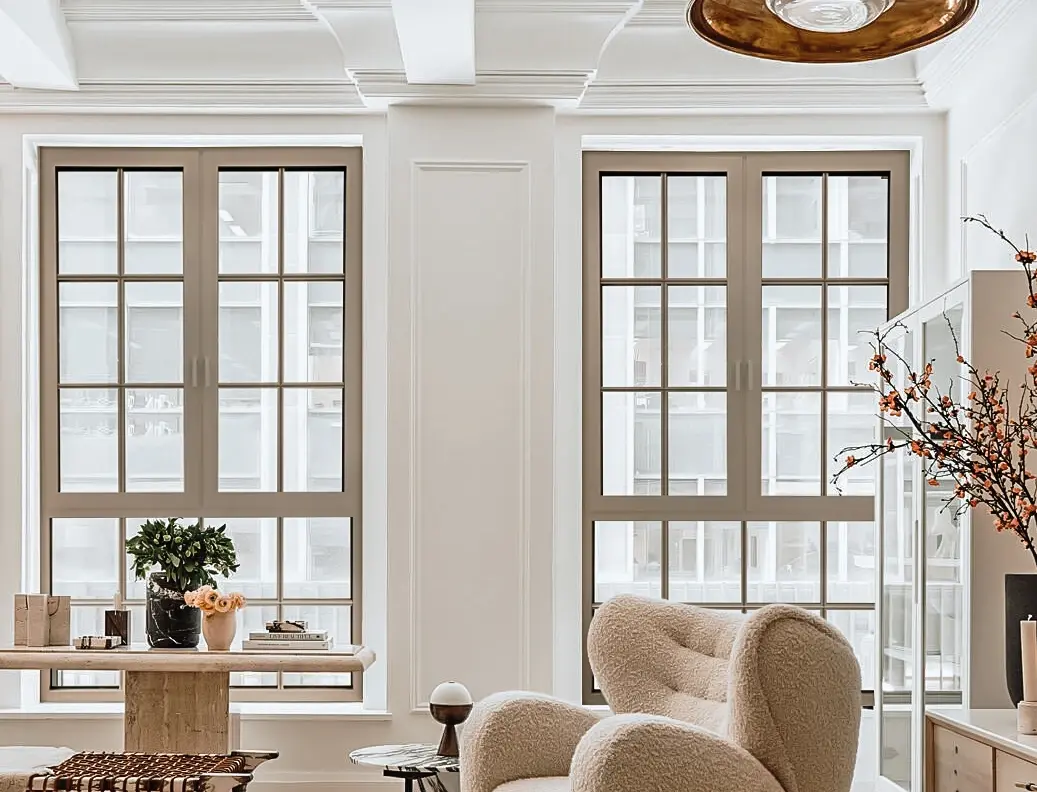

| XW85IN_BC Window | XW95IN_BC Window | |
| Design | ||
| Opening | Inwards opening | Inwards opening |
| Opening type | Side-hung, turn/tilt, double-vent,fixed light | Side-hung, turn/tilt, double-vent,fixed light |
| Basic depth(mm) | 86 | 96 |
| Vent frame depth(mm) | 86 | 96 |
| Face width of frame(mm) | 50 | 50 |
| Face width of vent frame(mm) | 39.5 | 39.5 |
| Face width of meeting stile(mm) | No | No |
| Face width of mullion(mm) | 165 | 165 |
| Face width of decorative grid(mm) | 27 | 27 |
| Total depth of decorative grid(mm) | 28 | 28 |
| Concealed hinge | Yes | Yes |
| Reinforcement mullion | No | No |
| Surface finish | MED, powder coating | MED, powder coating |
| Pluggable inwards opening flyscreen sash | No | No |
| Fixed lights | Yes | Yes |
| Vent data | ||
| Min.-max. vent height(mm),depending on window type | 735-2400 | 735-2400 |
| Min.-max. vent width(mm),depending on window type | 525-1200 | 525-1200 |
| Max. vent weight(Kg) | 170 | 170 |
| Min.-max. glass thickness(mm) | 7-29 | 7-39 |
| Implement scenario | ||
| Façade insert unit | Yes | Yes |
| Conservatory insert unit | Yes | Yes |
| Parameter | ||
| U values in W/(㎡·K) | 1.8 | 1.5 |
| Sound reduction(dB), depending on glazing type | 38 | 39 |
| Air permeability(m3/(m.h)) | 0.21 | 0.4 |
| Water tightness(Pa) | 1000 | 1000 |
| Wind load resistance(KPa) | ≤5 | ≤5 |
