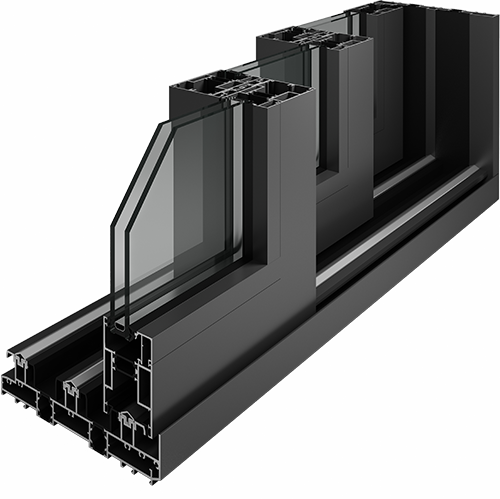

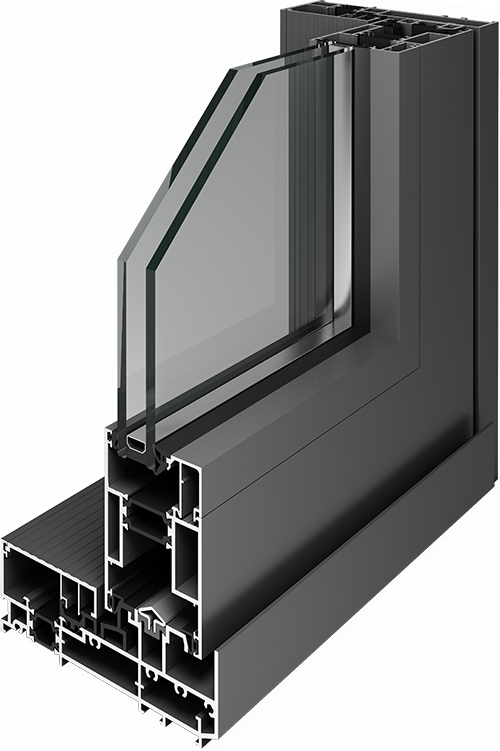

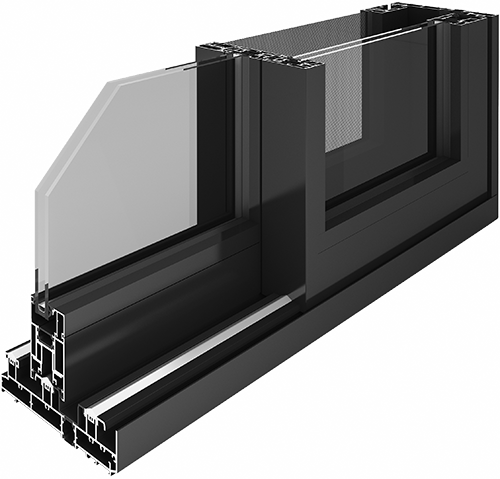

| XD63LS_90 Lift sliding door | XD63SS_90 Sliding
door |

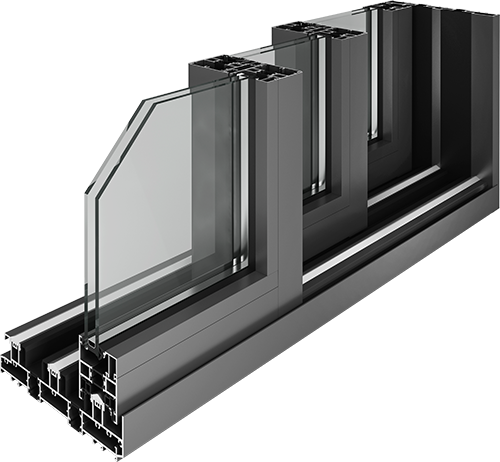

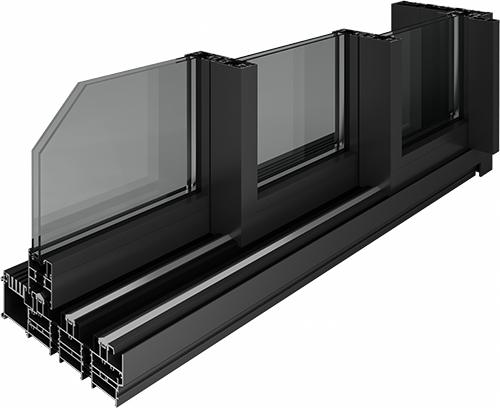

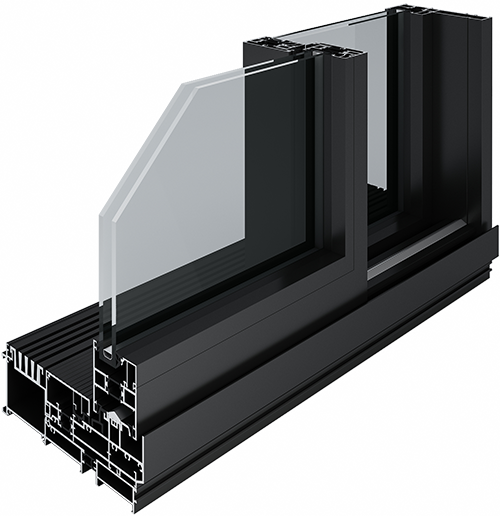

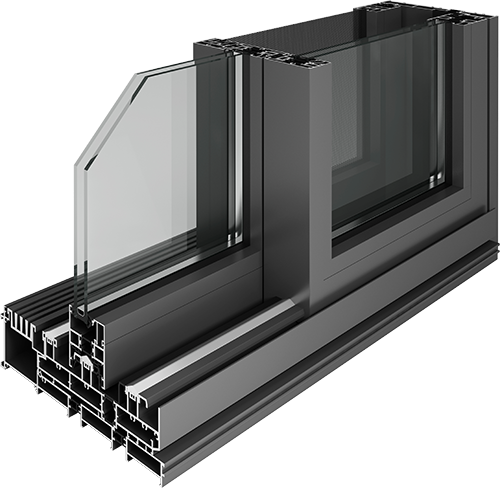

XD63LS_65 Lift sliding door | XD63SS_65 Sliding door | XD63SS_25 Sliding door | ||
| Design | ||||||
| Opening | Lift-sliding | Sliding | Lift-sliding | Sliding | Sliding | |
| Min.-max. basic depth(mm) | 140-217 | 140-217 | 140-217 | 140-217 | 160-217 | |
| Vent depth(mm) | 63 | 63 | 63 | 63 | 63 | |
| Face width of interlock section(mm) | 90/40 | 90/40 | 70/40 | 70/40 | 40 | |
| Face width of vent frame(mm) | 91 | 91 | 66 | 66 | 25 | |
| Face width of meeting stile(mm) | 192 | 192 | 150 | 150 | 103 | |
| Face width of top outer frame(mm) | 50 | 50 | 50 | 50 | 50 | |
| Face width of bottom outer frame(mm) | 22 | 22 | 22 | 22 | 22 | |
| Min.-max. face width of mullion(mm) | Vent: 0-90 | Vent: 0-90 | Vent: 0-65 | Vent: 0-65 | Vent: 0-26 | |
| Frame: 0-26 | Frame: 0-26 | Frame: 0-26 | Frame: 0-26 | Frame: 0-59 | ||
| Threshold height(mm) | 50 | 50 | 50 | 50 | 50 | |
| Reinforcement interlock section | Yes | Yes | Yes | Yes | Yes | |
| Number of tracks | Single track, Double track, Triple track | Single track, Double track, Triple track | Single track, Double track, Triple track | Single track, Double track, Triple track | Double track, Triple track | |
| Concealed track | Yes | Yes | Yes | Yes | Yes | |
| Concealed drainage | Yes | Yes | Yes | Yes | Yes | |
| Ventilation vent | Yes | Yes | Yes | Yes | No | |
| Integral glass guardrail | Yes | Yes | Yes | Yes | No | |
| Fly screen | Yes | Yes | Yes | Yes | No | |
| Surface finish | MED, powder coating | MED, powder coating | MED, powder coating | MED, powder coating | MED, powder coating | |
| Fixed lights | Yes | Yes | Yes | Yes | Yes | |
| Vent data | ||||||
| Min.-max. vent height(mm) | 2200-3000 | 2200-3000 | 2200-3000 | 2200-3000 | 2200-3000 | |
| Min.-max. vent width(mm) | 800-3000 | 800-3000 | 800-3000 | 800-3000 | 800-3000 | |
| Max. vent size(m2) | 8 | 8 | 8 | 8 | 8 | |
| Max. vent weight(Kg) | 400 | 400 | 400 | 400 | 360 | |
| Min.-max. glass thickness(mm) | Regular(90mm interlock section): 9-39 | Regular(90mm interlock section): 9-39 | 14-40 | 14-40 | 14-40 | |
| Slim(40mm interlock section): 14-40 | Slim(40mm interlock section): 14-40 | |||||
| Implement scenario | ||||||
| Façade insert unit | Yes | Yes | Yes | Yes | Yes | |
| Conservatory insert unit | Yes | Yes | Yes | Yes | Yes | |
| Balcony enclosure | Yes | Yes | Yes | Yes | No | |
| Parameter | ||||||
| U values in W/(㎡·K) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Sound reduction(dB), depending on glazing type | 35 | 35 | 35 | 35 | 35 | |
| Air permeability(m3/(m.h)) | 0.2 | 0.2 | 0.2 | 0.2 | 0.75 | |
| Water tightness(Pa) | 800 | 800 | 800 | 800 | 500 | |
| Wind load resistance(KPa) | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | ≤4.5 | |
| Burglar resistance | RC2 | RC2 | RC2 | RC2 | RC2 | |
