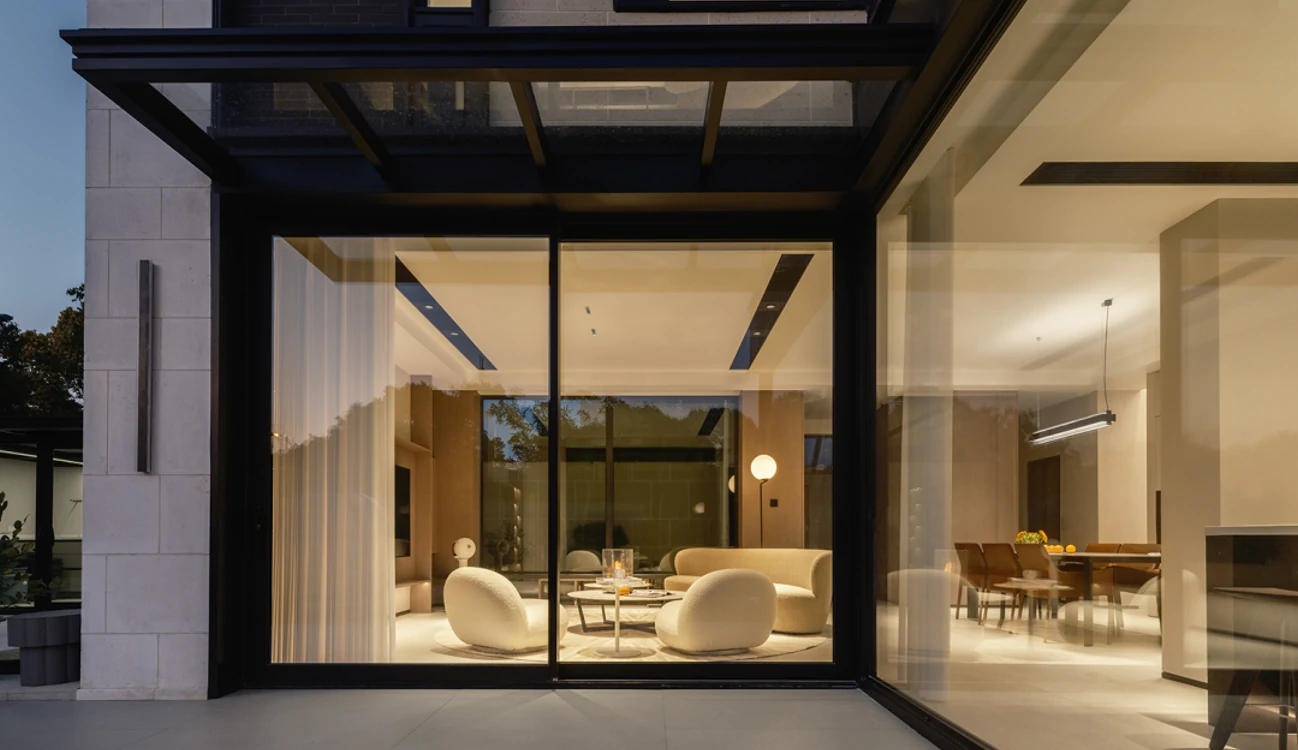

| XD73LS Lift sliding door | |
| Design | |
| Opening | Lift-sliding |
| Min.-max. basic depth(mm) | 140-217 |
| Vent depth(mm) | 73 |
| Face width of interlock section(mm) | 90/40 |
| Face width of frame(mm) | 26 |
| Face width of vent frame(mm) | 91 |
| Face width of meeting stile(mm) | No |
| Face width of top outer frame(mm) | 54 |
| Face width of bottom outer frame(mm) | 29 |
| Min.-max. face width of mullion(mm) | 26 |
| Threshold height(mm) | 49 |
| Reinforcement interlock section | Yes |
| Number of tracks | Single track, Double track, Triple track |
| Concealed drainage | Yes |
| Ventilation vent | Yes |
| Integral glass guardrail | Yes |
| Fly screen | Yes |
| Surface finish | MED, powder coating |
| Fixed lights | Yes |
| Vent data | |
| Min.-max. vent height(mm) | 2200-3000 |
| Min.-max. vent width(mm) | 800-3000 |
| Max. vent size(m2) | 8 |
| Max. vent weight(Kg) | 400 |
| Min.-max. glass thickness(mm) | 23.5-48.5 |
| Implement scenario | |
| Façade insert unit | Yes |
| Conservatory insert unit | Yes |
| Balcony enclosure | Yes |
| Parameter | |
| U values in W/(㎡·K) | 1.4 |
| Sound reduction(dB), depending on glazing type | 37 |
| Air permeability(m3/(m.h)) | 0.75 |
| Water tightness(Pa) | 450 |
| Wind load resistance(KPa) | ≤4.5 |
| Burglar resistance | RC2 |
