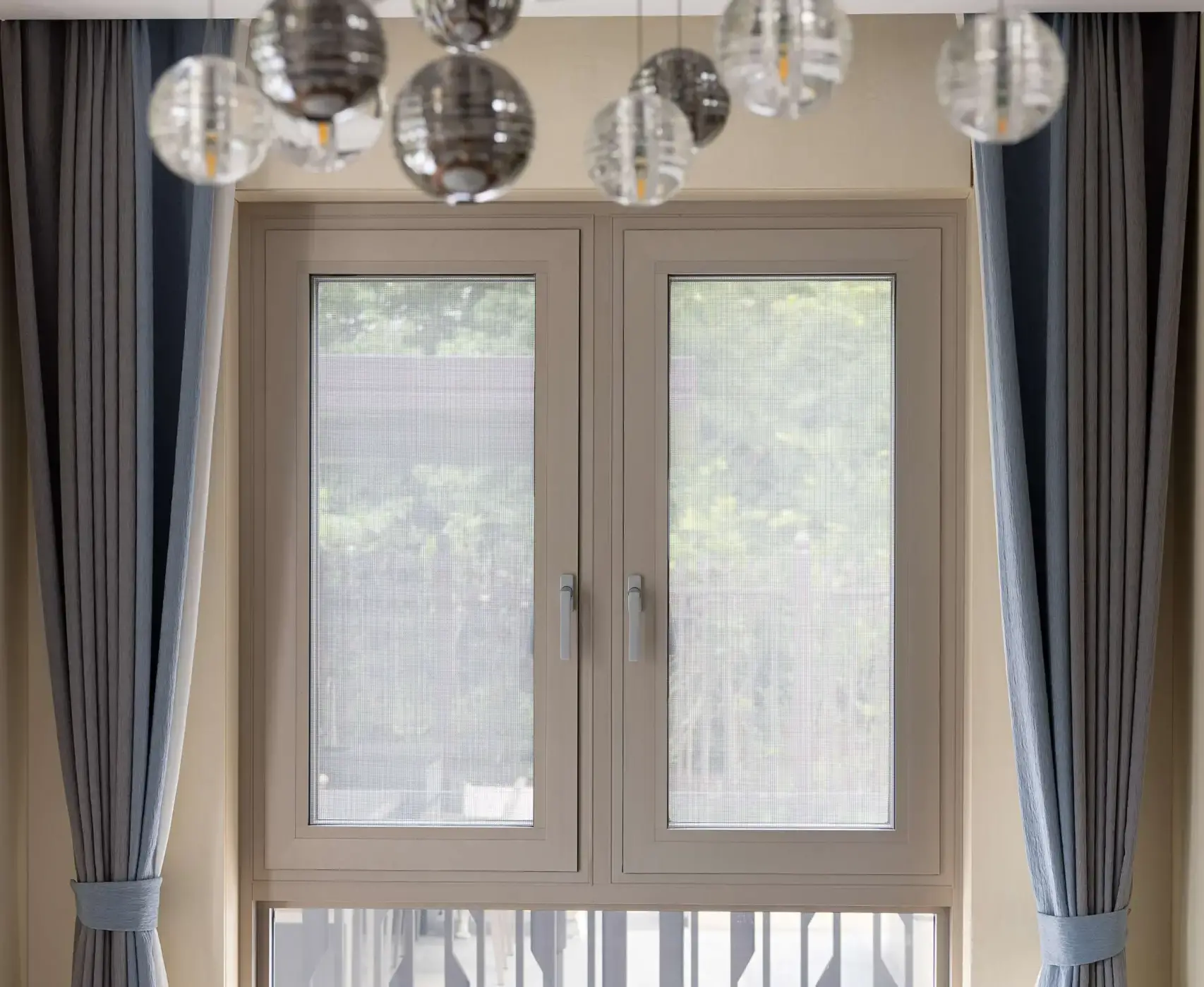

XWS115 Window with Screen Sash

XWS115OU

U-value in W/(㎡·K)

2.3

Sound reduction(dB)

35

Water tightness(Pa)

1000

Burglar resistance

RC3(Hardware)

Redefining comfort and safety

The XWS115 is a sophisticated multi-chamber thermal insulation aluminum profile window with screen solution, featuring a basic depth of 115mm, and designed to deliver optimal performance in modern architectural contexts.

One of its key features is the 316 stainless steel mesh screen, providing durability and protection against environmental elements. This makes the XWS115 particularly suitable for areas with high mosquito activity or where safety is a primary concern, such as high-rise buildings. The innovative design allows for ventilation while effectively preventing insects from entering, creating a comfortable and secure indoor environment.

In addition to its practical advantages, the system features an outward-opening glass panel and an inward-opening screen sash, seamlessly combining functionality with aesthetics.

The XWS115 significantly enhances architectural design, style, and value. Its sleek profile and versatile functionality inspire creative architectural solutions, elevating the overall aesthetic appeal of any building. Whether for residential, commercial, or institutional use, the XWS115 sets a new standard in window with screen technology, reshaping the possibilities for modern architecture.

Discover More

Planning Highlight

Designing operable windows to be on the same horizontal plane as fixed glass panels enhances thermal insulation performance

The glass vent and screen vent can both open up to 90 degrees, facilitating easier cleaning

Concealed fittings in screen sash vent provide a tidy and clean visual impression

Wide range of outwards opening options including e.g. side-hung outwards opening, double-vent

This system is equipped with a coex central gasket, significantly enhancing the sealing precision and properties

Flyscreen material: 316 Stainless steel screen

The glazing bead is uniquely designed for indoor-side installation, preventing outdoor prying and simplifying interior side glass installation for enhanced safety

Overview of XWS115 Window with Screen Sash

XWS115OU Window with screen sash
Design
Opening Outwards opening
Opening type Side-hung, fixed light, double-vent
Basic depth(mm) 115
Vent frame depth(mm) Glass vent:66, Sash vent:31.5
Face width of frame(mm) 64
Face width of vent frame(mm) 85
Face width of meeting stile(mm) No
Face width of mullion(mm) 198/260
Friction hinge(glass vent) Yes
Concealed hinge(screen sash) Yes
Reinforcement mullion No
Surface finish MED, powder coating
Fixed lights Yes
Vent data
Min.-max. vent height(mm),depending on window type 450-1800
Min.-max. vent width(mm),depending on window type 450-1200
Max. vent weight(Kg) 80
Min.-max. glass thickness(mm) 7-32
Implement scenario
Façade insert unit Yes
Conservatory insert unit Yes
Parameter
U values in W/(㎡·K) 2.3
Sound reduction(dB), depending on glazing type 35
Air permeability(m3/(m.h)) 0.4
Water tightness(Pa) 1000
Wind load resistance(KPa) ≤5
